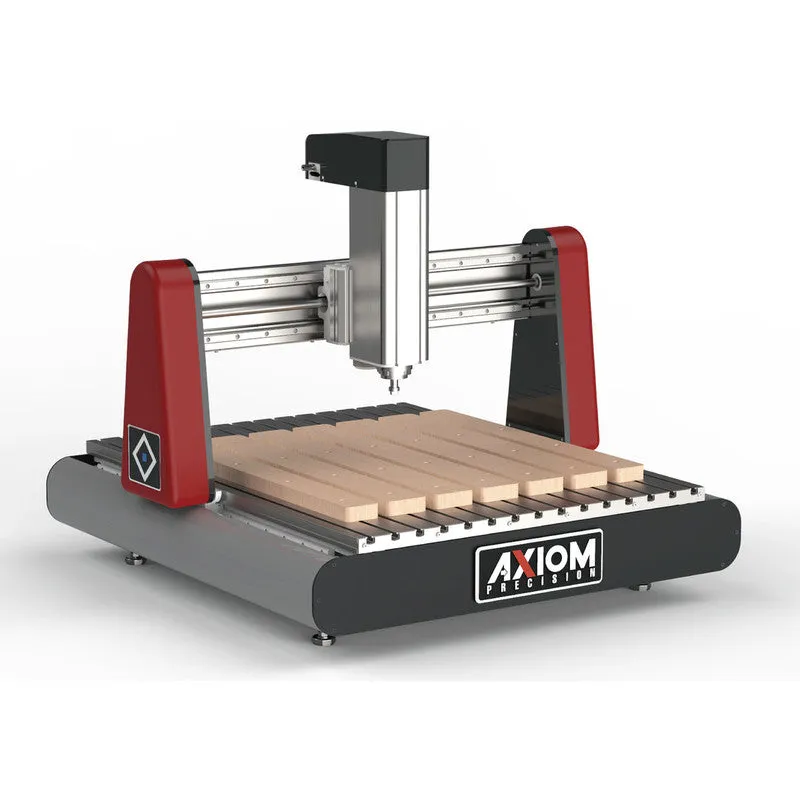

The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. We also provide a full complement of accessories ensuring that you’ll receive a package that’s specifically tailored to your CNC needs.
Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user’s learning curve.
Please allow 1-2 weeks delivery - Flat Rate of $495 for Shipping!!
Features:
- High Rigidity Extruded Aluminum Frame
- Interlocking Aluminum Table
- Integrated MDF Spoil Board
- Auto Tool Touch-off Plate
- Prismatic Guides In All Axes
- Precision Ball Screws
- 1HP (800W) Electro Spindle
- RichAuto B11 Industrial 3-Axis CNC Controller

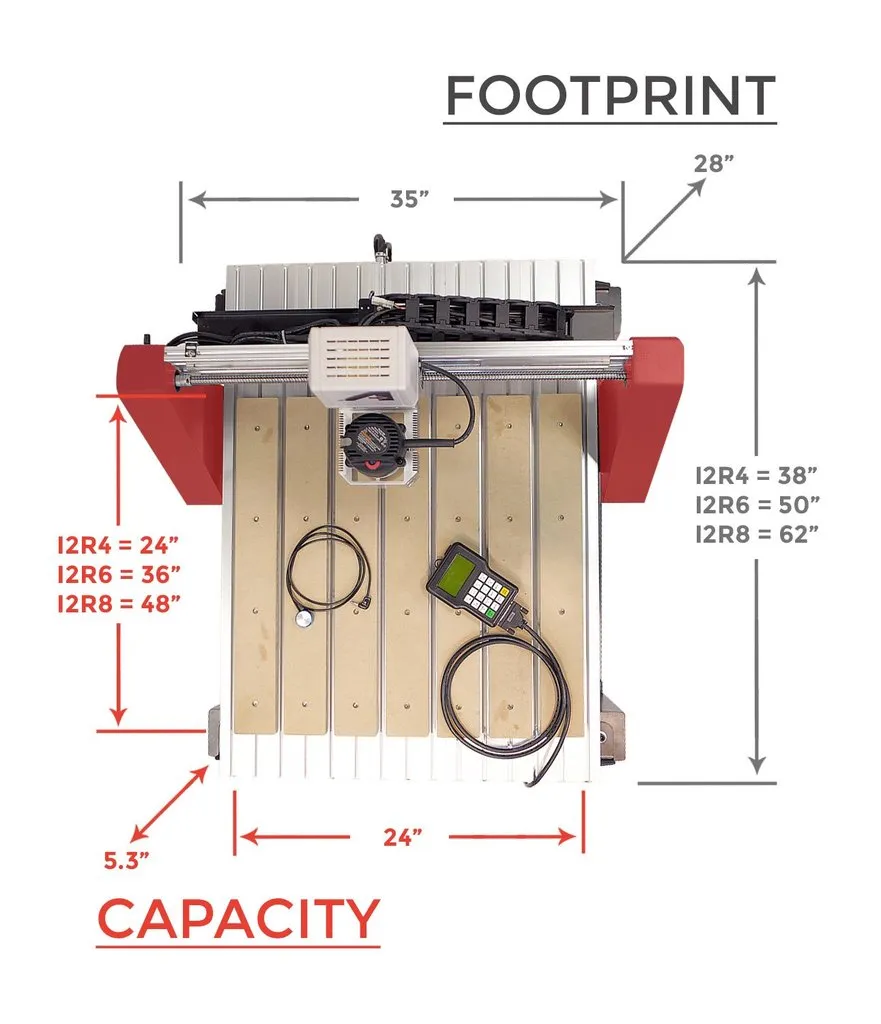

| X axis travel | 24" (610mm) |
| Y axis travel | 24" (610mm) |
| Z axis travel | 3.937" (100mm) |
| Table work area | 28.4" x 37" |
| Electro Spindle | 800W (1HP) |
| Spindle speed | 0-24,000 RPM |
| Rapid feed rate | 150 IPM (3.81 MPM) |
| Precision Linear Guideway | X/Y/Z |
| Precision Ball Screw | X/Y/Z |
| Ball Screw Diameter | 16mm |
| Positional Accuracy | /- .00589" (0.15mm) |
| Power requirements | 115V, 50~60Hz, 13A, 1-Phase |
| Working Table | High rigidity Aluminum Extrusion |
| Gantry bridge | High rigidity Aluminum Extrusion |
| Gantry Supports | Aluminum billet machined |
| Gantry Clearance | 4 1/2" (114.0mm) |
| Machine Base | All Welded Steel Frame |
| Machine Dimensions | 38"L x 35"W x 28"H |
| Shipping Dimensions | 40" x 37" x 15" |
| Machine Weight | 176 lbs |
| Tool Touch Off | Included |
